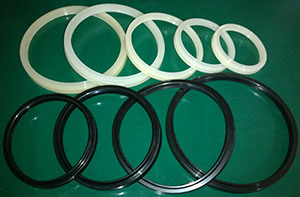

더스트 씰
더스트 씰
  • 실린더
  • 외부로부터의 먼지와 티끌의 침입을 방지하고 패킹과 베어링을 보호

NBR
SDR
PDU
SER
SFR
PCS(DWI)
DKI
SCB(DKB)
우레탄
KWS
KDD
KDH
KWU
KWK
KWT
KWL
SDR 규격표
No. ID OD T
SDR-10 10 18 6
SDR-12 12 20 6
SDR-14 14 22 6
SDR-16 16 24 6
SDR-18 18 26 6
SDR-20 20 28 6
SDR-22 22 30 6
SDR-22.4 22.4 30.4 6
SDR-25 25 33 6
SDR-25.4 25.4 33.4 6
SDR-28 28 36 6
SDR-30 30 38 6.5
SDR-31.5 31.5 39.5 6.5
SDR-32 32 40 6.5
SDR-35 35 43 6.5
SDR-35.5 35.5 43.5 6.5
SDR-36 36 44 6.5
SDR-38 38 46 6.5
SDR-40 40 48 6.5
SDR-45 45 53 6.5
SDR-50 50 58 6.5
SDR-53 53 61 6.5
SDR-56 56 64 6.5
SDR-60 60 68 6.5
SDR-63 63 71 6.5
SDR-65 65 73 6.5
SDR-67 67 75 6.5
SDR-70 70 80 8
SDR-71 71 81 8
SDR-75 75 85 8
SDR-80 80 90 8
SDR-85 85 95 8
SDR-90 90 100 8
SDR-95 95 105 8
SDR-100 100 110 8
SDR-105 105 115 8
SDR-110 110 120 8
SDR-120 120 130 8
SDR-120A 120 133 9.5
SDR-125 125 138 9.5
SDR-130 130 143 9.5
SDR-140 140 153 9.5
SDR-150 150 163 9.5
SDR-160 160 173 9.5
SDR-165 165 178 9.5
SDR-170 170 183 9.5
SDR-180 180 193 9.5
SDR-200 200 213 9.5
SDR-240 240 256 13
SDR-250 250 266 13
SDR-270 270 286 13
